Maxwell ANCHORMAX Windlass [ANCHORMAX]

Only 1 left
SKU: CO-14941
$943.95
Sale $1,297.00 $943.95

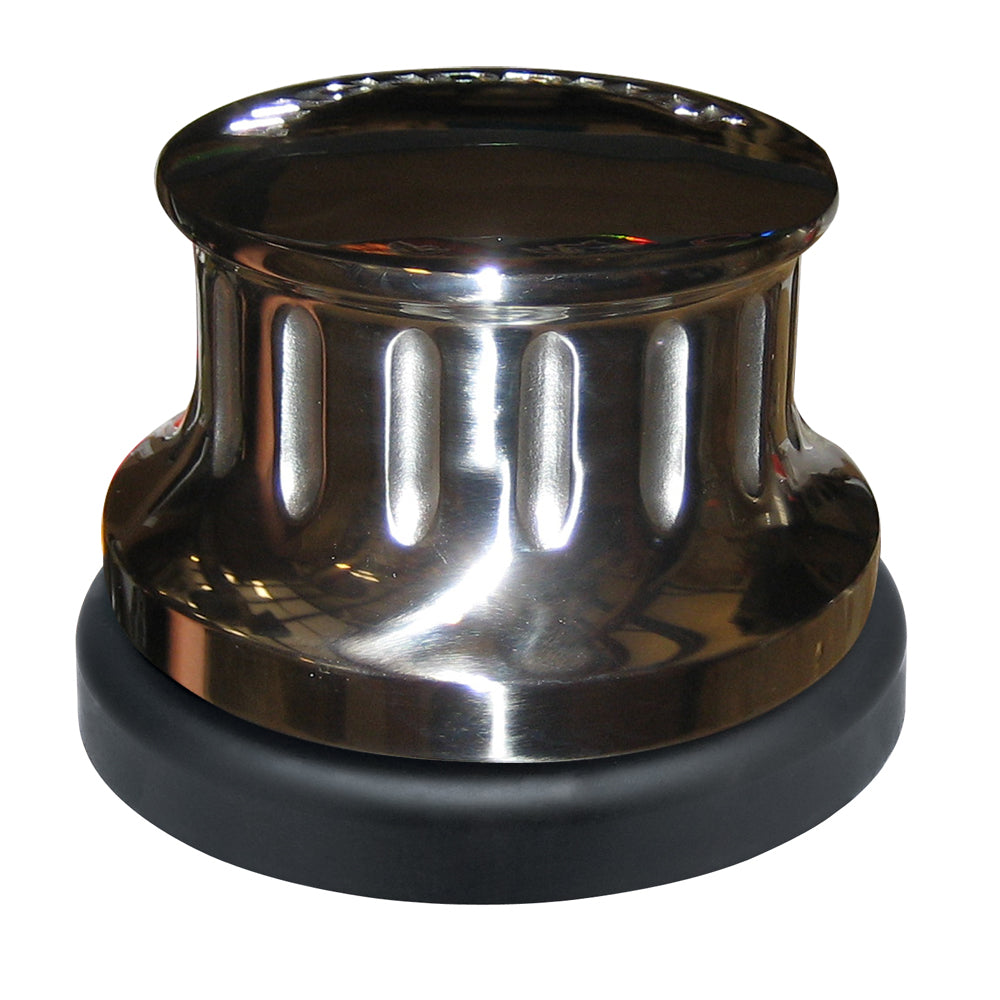

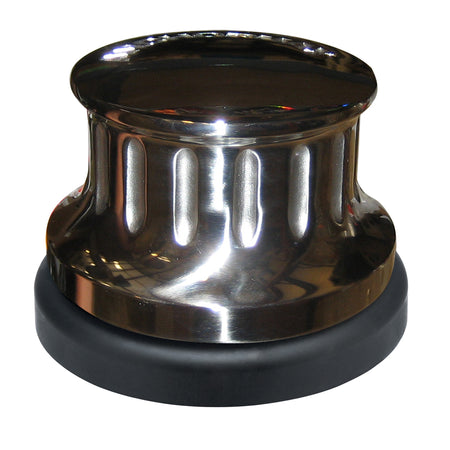

ANCHORMAX™ Windlass

Features:

  • Has an extremely high power to weight ratio
  • ompact, fully sealed gearbox is driven by a vertically mounted, permanent magnet motor
  • Intrusion below decks is minimised making the design ideal for boats from 5m (16ft) to 10m (32ft)
  • Fitting to the boat is simplicity itself as no dismantling of the winch is required
  • Gear housings are marine-grade alloy and the drum is stainless steel
  • Supplied as a single direction (clockwise) unit, complete with deck switch, fastenings, template and fitting instructions
  • Not recommended for use to haul halyards
  • Not recommended for use to haul chain



Note: Each winch is supplied as a single direction (clockwise) fully tested unit complete with fitting instructions, deck switch, templates and fastenings.

STANDARD EQUIPMENT
  • Footswitch



SPECIFICATIONS
Maximum Line Pull 386kg (850lb)
Speed @ nominal working load 24m/min (76ft per min) (80 amps with 100kg/220lb load)
Voltage 12v
Power 600w
Weight 8kg(17.6lb)
Maximum Boat Load 10m (33ft)
Max. Boat Weight 4 Tons
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Quick Guide (pdf)
Brochure (pdf)
